Shining3D FreeScan Trak PRO

*Send a price inquiry

The Shining3D FreeScan Trak is a portable wireless CMM system or handheld 3D scanner designed to accurately capture detailed objects.

This product is currently unavailable in your region.

SKU: C5924 Categories: ,

Main features

  • Portable CMM System
  • Spatial Position Capture of the 3D Scanner
  • Metrological Accuracy
  • Wireless connection
  • User-friendly software
Loading...

SHINING3D FREESCAN TAPE IS A PORTABLE WIRELESS CMM SYSTEM

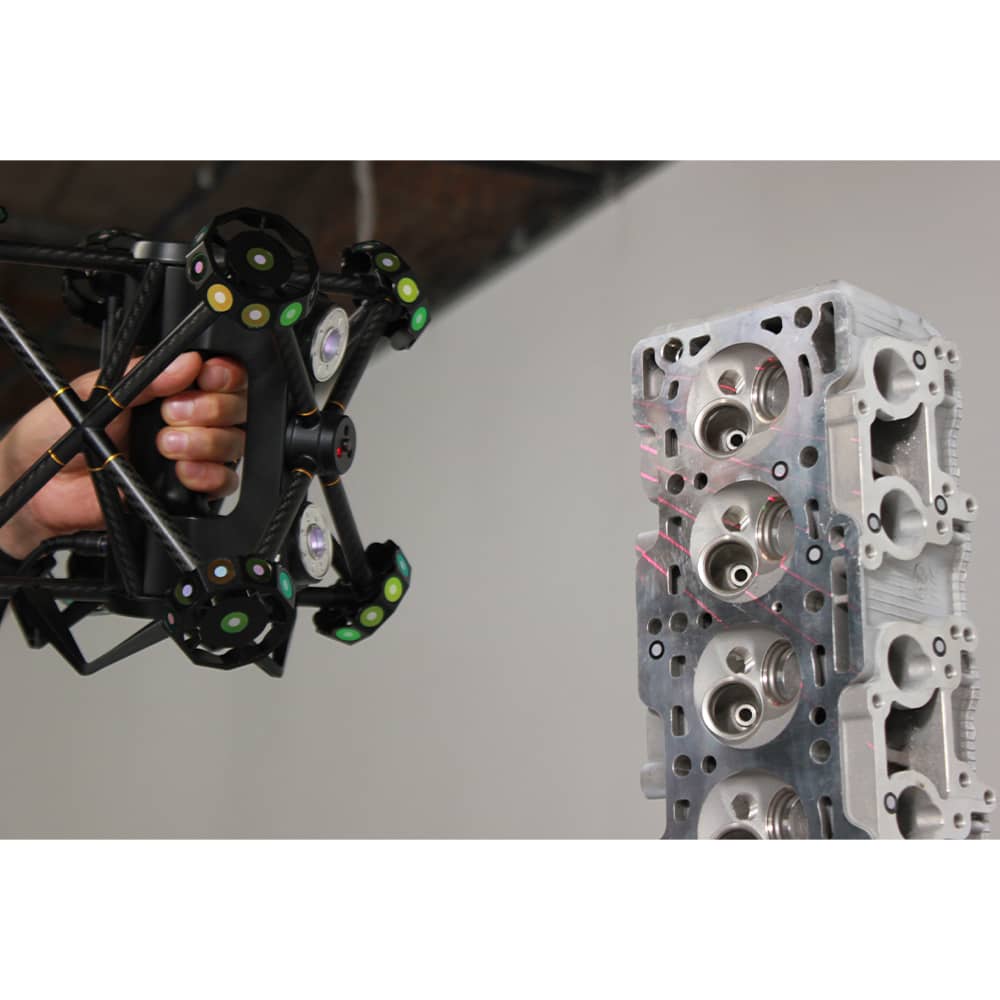

The Shining3D FreeScan Trak is a handheld 3D scanner based on the latest technology. It is capable of real-time 3D spatial position capture and offers a portable, efficient and reliable 3D measurement solution. The system helps the operator to get rid of the time-consuming process of gluing markers. This simplifies the acquisition of data for medium to large objects with metrological accuracy. It is suitable for a variety of static and dynamic applications, including large-scale inspections in the aerospace, automotive, marine, energy, etc. industries.

3D SCANNING ACCURACY AND RANGE

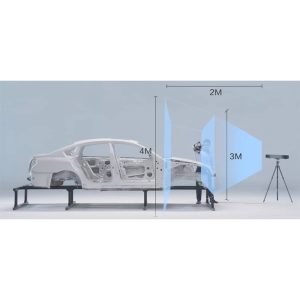

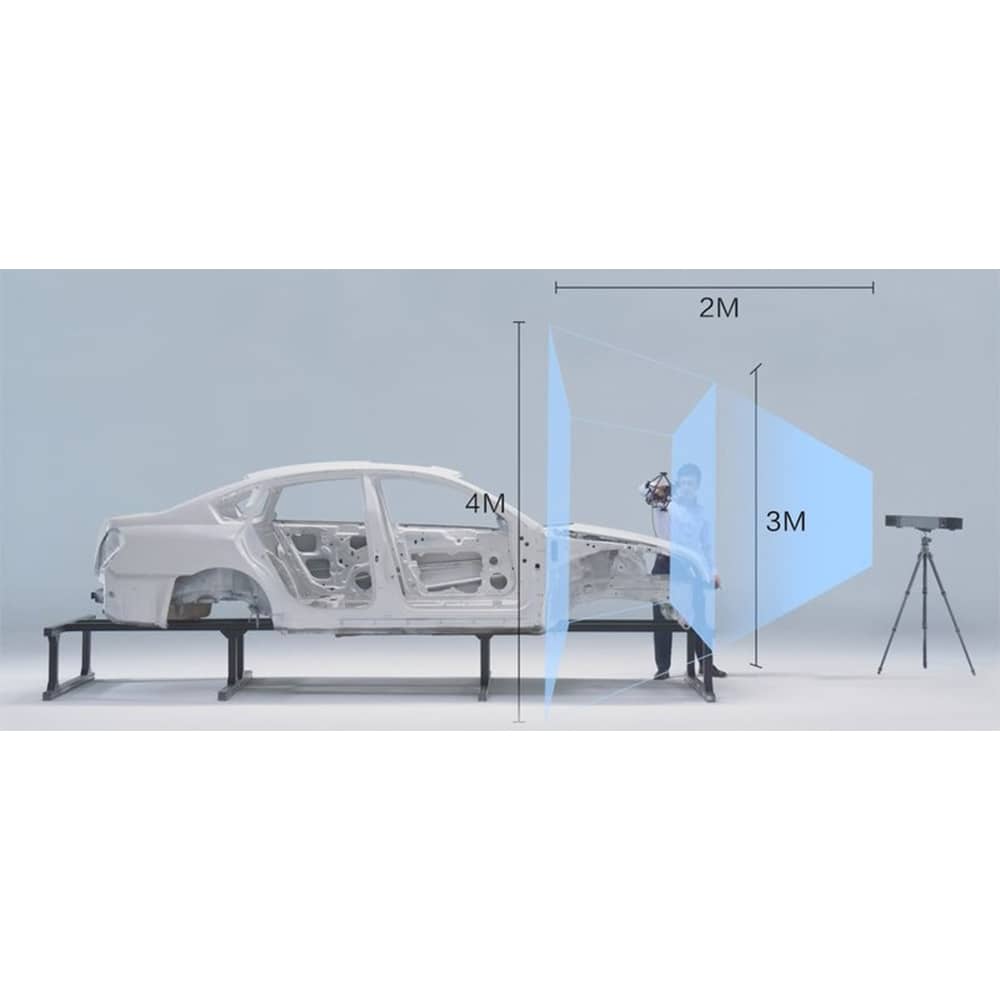

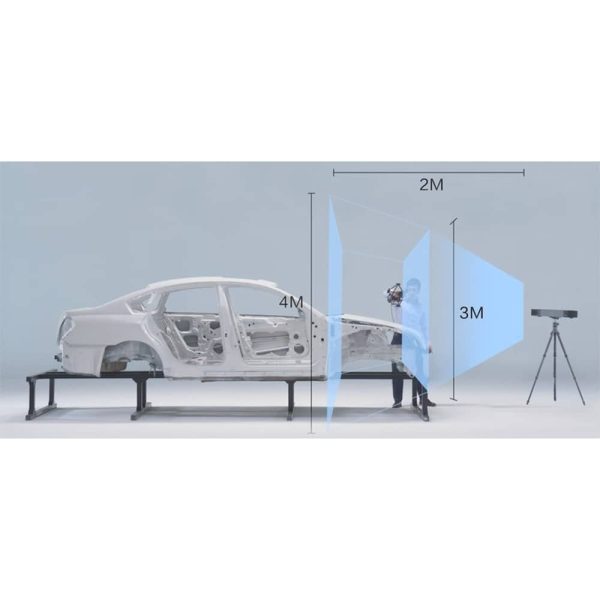

The Freescan Trak is a professional 3D scanner with a metrological accuracy of up to 0.03 mm and high repeatability of 3D scanning, and boasts an outstanding resolution of up to 0.05 mm. It offers a 3D scanning range of up to 3000 x 2500 mm, making it the perfect solution for 3D scanning of large and medium-sized objects.

TRACKING SYSTEM

The Shining3D FreeScan Tape is equipped with a built-in tracking system that allows the position and orientation of the 3D scanner to be defined in real time. This tracking system allows users to move freely around the object while scanning, and the system ensures precise alignment of multiple scans. Time-consuming marker pasting is also a thing of the past with FreeScan Tape.

SOFTWARE

FreeScan Tape is compatible with a wide range of software such as Geomagic Essentials, Geomagic Design X and Geomagic Control X.

WHAT YOU WILL FIND IN THE PACKAGE

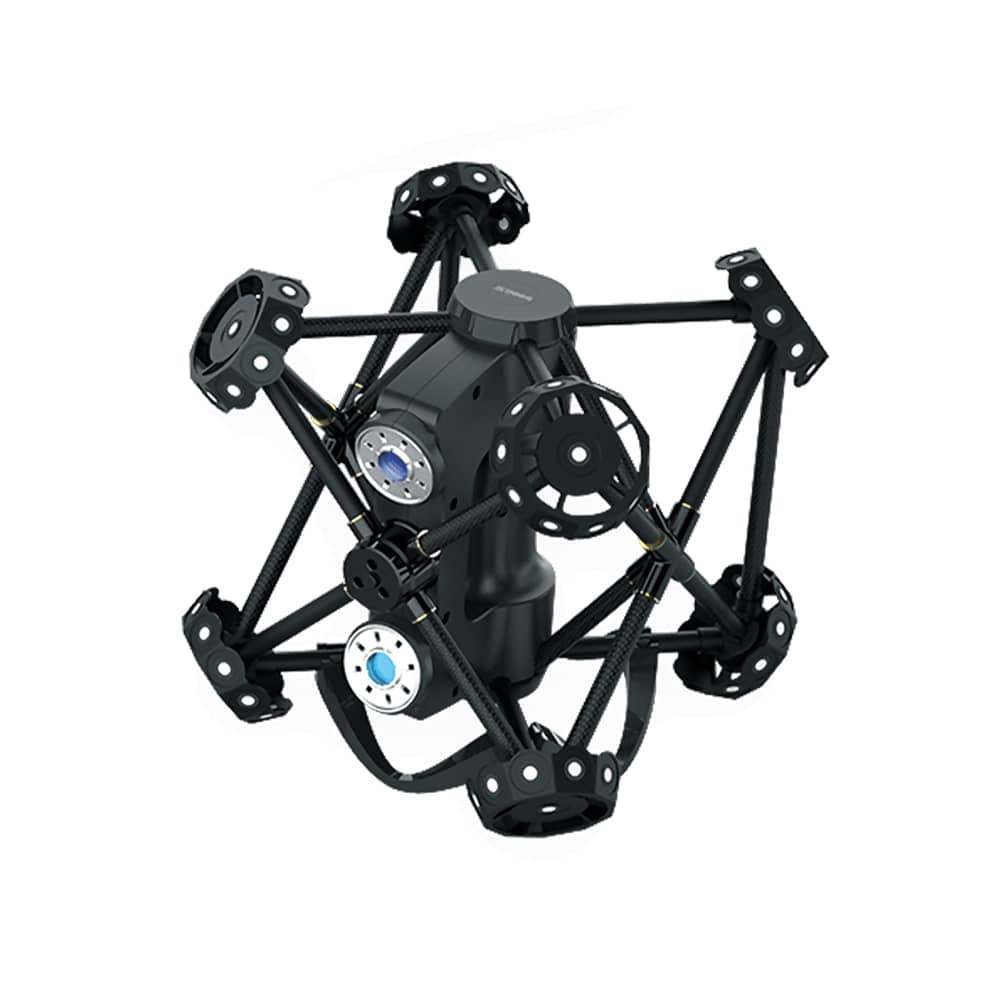

  • Freescan Trak 3D scanner

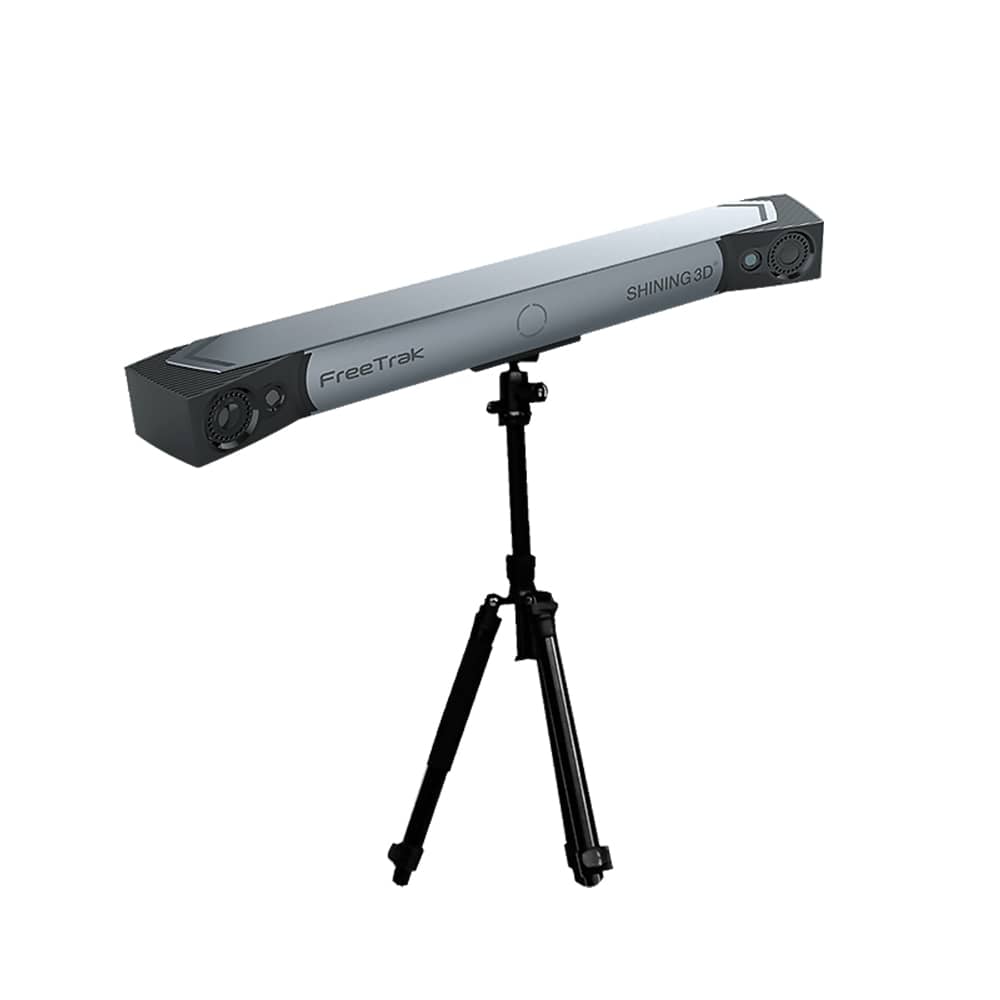

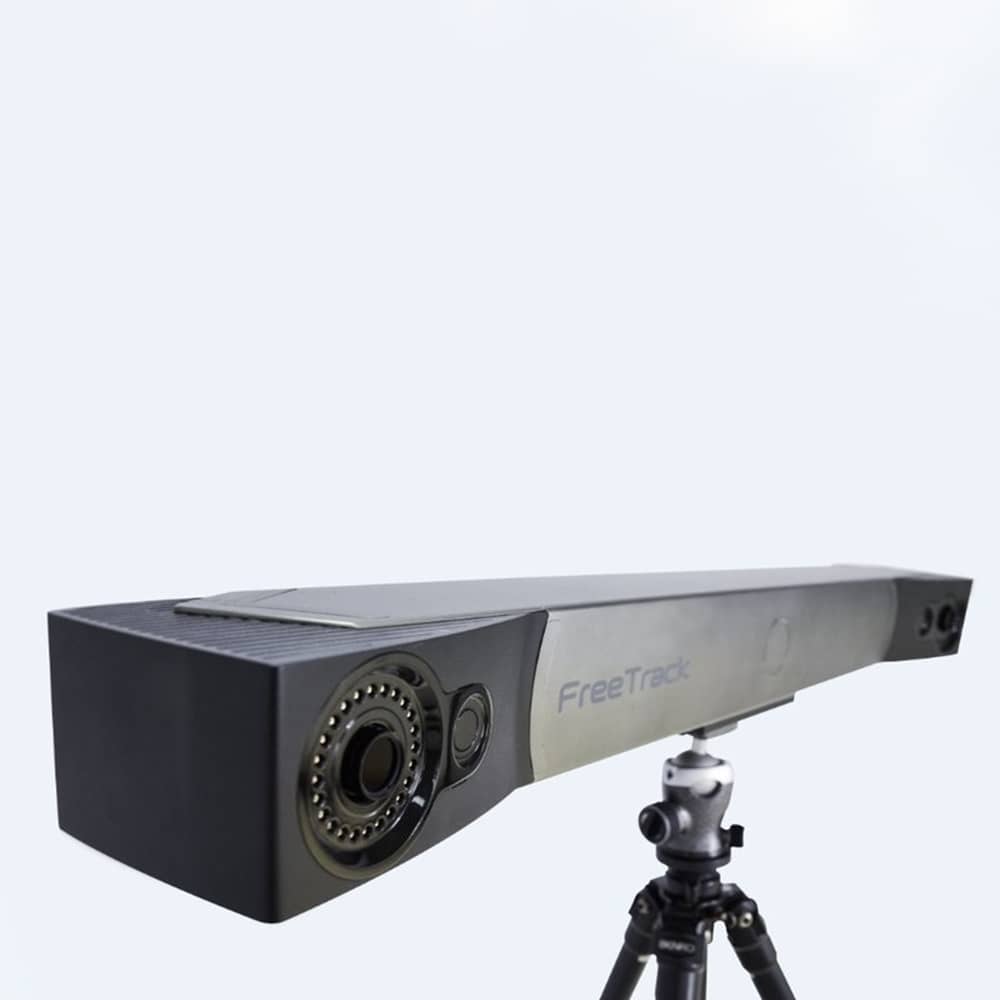

  • Freetrak tracker
  • “Probe” module
  • Battery pack
  • Scanning software
  • Instructions for use

Overall, the Shining3D FreeScan Trak is a versatile and reliable 3D scanner that combines portability, accuracy and ease of use, making it suitable for a wide range of professional applications in industries such as manufacturing, design and cultural heritage.

Brand

Model

Type of 3D scanner

Color 3D scanning

Using a 3D scanner

Architecture, Design, Digital archiving, Production, Quality control, Reverse engineering, Toolmaking

Maximum object size X, Y

Accuracy up to (in mm)
