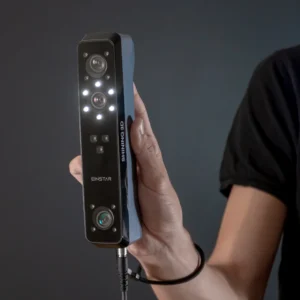

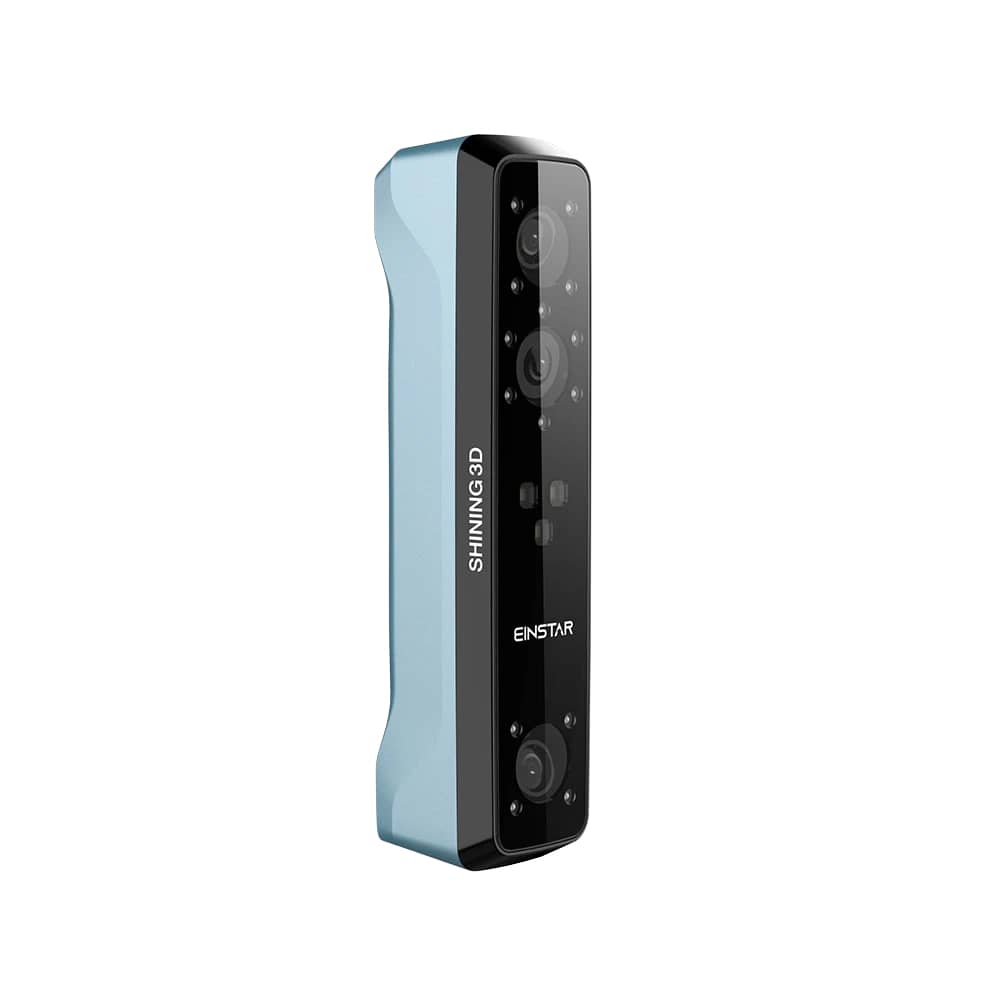

Shining3D Einstar

Rated 5.00 out of 5 based on 1 customer rating
(0 customer reviews)

1.049,00

The Shining3D Einstar is a very affordable handheld 3D scanner. Provides high-quality colour data capture of the object.

Availability: In stock

All prices incl. VAT.

Main features

  • Easy to use
  • Affordable 3D scanner
  • Option for 3D scanning in color
  • 3D scanning accuracy up to 0.1 mm
  • 3D scanning speed up to 14 fps
Loading...

SHINING3D EINSTAR PACKAGE

In the standard package you will find the Shining3D Einstar handheld 3D scanner with Exstar software and a lightweight carrying case that includes a range of accessories such as a silicone cover, introductory user guide, positioning markers, lens wipe, carrying strap, power adapter and USB cable.

EINSTAR PROVIDES HIGH QUALITY DATA

Fast and easy collection of high-density point clouds with point spacing down to 0.1 mm.

HIGH COLOUR CONTRAST

Take advantage of the built-in RGB colour camera. 3D data with authentic colours. With Einstar, you will not only be able to get the dimensions of the 3D scanned piece, but also the colour information.

INCORPORATES TECHNOLOGY THAT FOCUSES ON CAPTURING DETAILS

Einstar has built-in detail enhancement technology that optimises the point cloud for perfect data.

EINSTAR PROVIDES A SIMPLIFIED USER EXPERIENCE

Smooth and fast performance with 3D scanning speeds up to 14 FPS.

  • Smart tracking
  • Automatic alignment
  • Intelligent algorithm

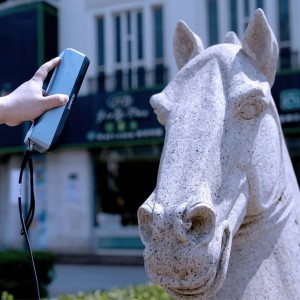

STABLE OUTDOOR 3D SCANNING

Equipped with three VCSEL infrared projectors, two depth cameras and one RGB camera, Einstar is able to capture data in a stable way, even outdoors. Allows adjustable distance for 3D scanning of small and large objects.

EINSTAR IS EXTREMELY EASY TO USE

  • Ergonomic design
  • Only one USB cable for data transfer and power supply
  • Elegant workflow and simple post-processing
  • “Plug & Play” commissioning



SAFE FOR THE EYES

  • No light from the projector during 3D scanning with Einstar
  • Comfortable and safe for the eyes
  • Hair Mode option to get enough data for 3D hair scanning or to enhance all data

WHERE CAN YOU USE EINSTAR?

  • 3D printing
  • Design
  • digital archiving
  • Education
  • culture and arts
  • VR&AR

ModelEinstar
Tip 3D skenerjaRočni vstopni
Barvno 3D skeniranjeDa
Načini 3D skeniranjaSkeniranje objektovPortretni način – skeniranje ljudi
Svetlobni virInfrardeča VCSEL strukturirana svetloba
Delovna razdalja160 – 1400 mm
Optimalna delovna razdalja400 mm
Velikost polja skeniranja434 x 379 mm
Razdalja med točkami0,1 – 3 mm
Hitrost 3D skeniranjado 14 fps in 980.000 točk/s
Način poravnavePoravnava z markerji, poravnava na strukturo, poravnava na gradnike, hibridna poravnava
Programska opremaShining3D
Izhodni formatiOBJ, STL, PLY, ASC, 3MF, P3
Operacijski sistemWindows 10/11 64-bit
CPUIntel Core i7-11800H ali novejši
RAM32 GB ali več
Grafična karticaNVIDIA GTX 1060 ali več
Podatkovni vmesnikUSB 2.0 ali novejši
Dimenzije 3D skenerja220 x 46 x 55 mm
Dimenzije kovčka245 x 245 x 90 mm
Masa 3D skenerja500 g
Dimenzije paketa432 x 322 x 162 mm
Masa paketa1,4 kg



Weight1,4 kg
Dimensions432 × 322 × 162 mm
Brand

Model

Type of 3D scanner

Color 3D scanning

Maximum object size X, Y

Accuracy up to (in mm)

Using a 3D scanner

Animations, Design, Digital archiving, Education, Hobby, VR & AR
