Smarter and larger tracking with FreeScan Trak ProW.
Shining3D FreeScan Trak ProW is the latest addition to the series, offering extended tracking and scanning capabilities. It is an excellent choice for large-scale 3D measurement tasks used across various industries. Its core features remain marker-free scanning and high accuracy. With battery power, it minimizes cable limitations and provides greater flexibility for your work.
Markers are not required.
High scanning speed.
3 modes for versatile use.
Ultra-wide measurement.
The Shining3D FreeScan Trak ProW enables exceptionally wide object measurement. The 3D scanner is designed to track objects from a distance of up to 8.6 meters. Furthermore, its scanning volume reaches up to 206.7 m³, significantly reducing the need to reposition the measuring device to expand the working area.

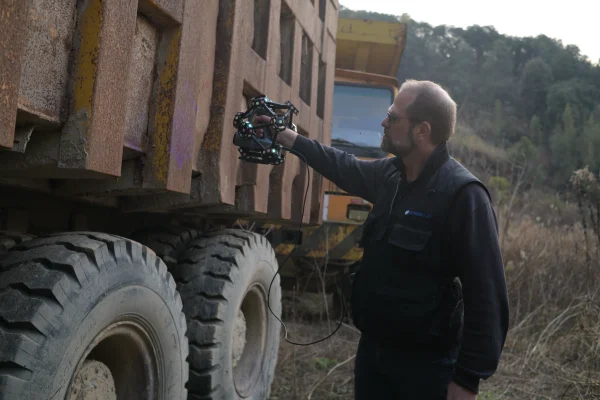

Wireless 3D scanning wherever you go.
The FreeScan Trak ProW enables wireless scanning wherever you need it. Its cable-free design allows real-time data transmission. Additionally, the power bank ensures unlimited mobility. It also features a built-in display for seamless operation.
What else does the FreeScan Trak ProW offer:
- Built-in computing modules,
- Integrated wireless modules,
- Flexible power supply,
- Real-time display.
Video Photogrammetry (VPG).

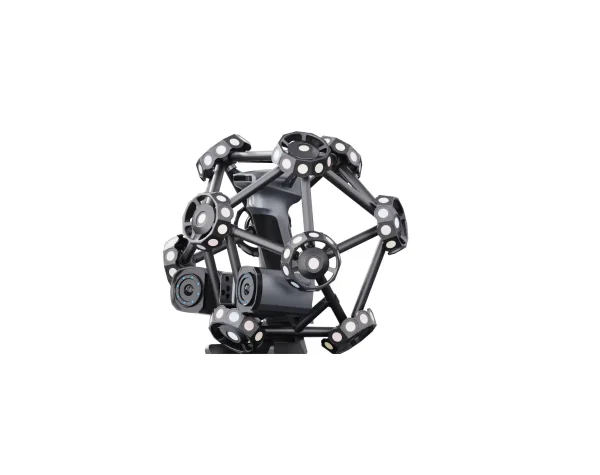

The FreeScan Trak ProW boasts patented Video Photogrammetry (VPG). With this technology, Shining3D eliminates the need for coded markers. Using photogrammetry, the FreeScan Trak ProW enables real-time marker verification simply through image capture. This ensures consistent volumetric accuracy and makes scanning large objects easier.
Photogrammetry works by capturing images, allowing the technology to measure the shape, size, and position of objects. In short, the 3D scanner uses photographs as a tool to construct 3D models from 2D images.
Customized measurement solutions.
Shining3D offers a fully customizable solution for integrating multiple systems, expanding the scanning range and meeting the demands of scanning larger objects. By working together, the systems cover a wider area, enabling efficient and precise full-field scanning.
Specifications
FreeScan Trak ProW | |
Volumetric accuracy. | 15.6 m3 (3.5 m from the tracking pole): 0.046 mm. 45 m3 (5 m from the tracking pole): 0.063 mm. 76 m3 (6 m from the tracking pole): 0.088 mm. 128 m3 (7.2 m from the tracking pole): 0.127 mm. 206.7 m3 (maximum tracking range, 8.6 m from the tracking pole). |
Volumetric accuracy with photogrammetry (VPG). | 0.044 + 0.012 mm/m (expansion volume). |
Fast scanning. | Included (50 laser lines). |
Detailed scanning. | Included (7 parallel laser lines). |
Deep pocket scanning. | Included (1 laser line). |
Weight. | FreeTrak W: 8.2 kg / TE25W: 1.47 kg. |
Connection. | Wireless & wired (optical fiber). |
Certifications. | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX |
Acceptance test. | VDI/VDE 2634 Part3 (certificated in ISO 17025 certificated accuracy lab) |
